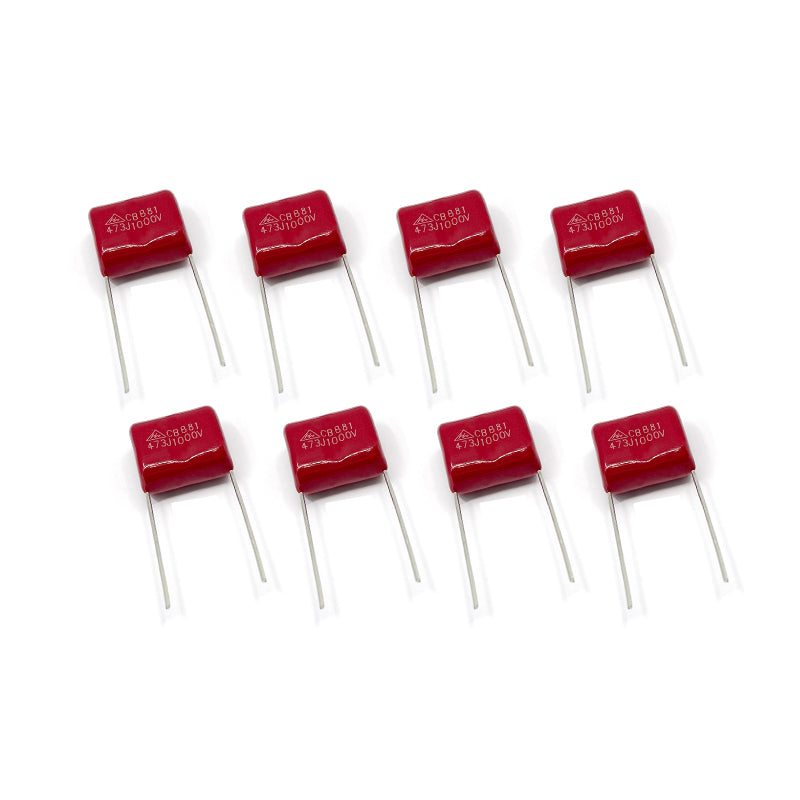

CBB81 473J 1000V ( OEM Asic miner psu parts )

Product description:

( OEM parts for Asic miner specially )

CBB81 473J 1000V

There are many types of capacitors, but most of them are not too high voltage, and CBB81 capacitor is an exception, it can not only withstand high voltage, but also withstand high frequency and high current. It is used very frequently in power supply and high frequency circuits. CBB81 The capacitor uses metallized polypropylene film as the medium, the aluminum foil is wound without inductance, encapsulated by epoxy resin, and the tinned copper-clad steel wire (CP wire) is radially led out. The biggest difference from ordinary polypropylene capacitors is that polypropylene and aluminum foil are wound in series, which is why it can withstand high voltage.

Product specification:

CBB81: capacitor specifications:

Climate conditions: -40~+105℃/56D

Rated voltage: 630VDC, 1000VDC, 1250VDC, 1600VDC, 2000VDC, 3000VDC.

Capacity error: J ±5%; K ±10%;

Capacity range: 0.001~0.47UF

Loss angle: ≤0.001 10KHZ

🔎 Important: Before placing your order, kindly double-check the dimensions (length & width) of your capacitor to ensure it is the correct fit for your device.
