CBB22 225J 450V ( OEM Asic miner psu parts )

Product description:

( OEM parts for Asic miner specially )

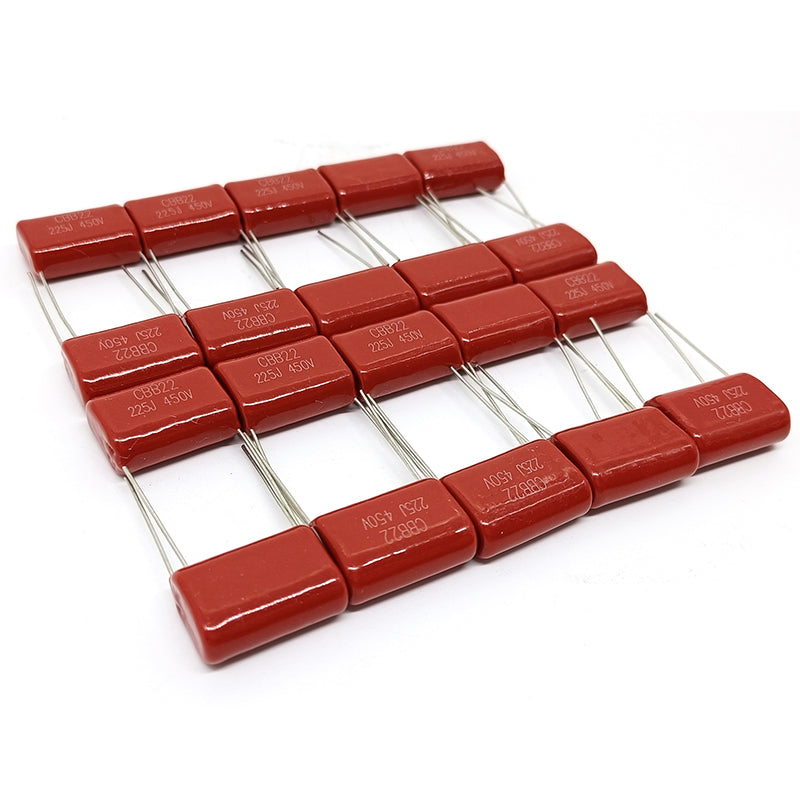

225J 450V CBB polypropylene film capacitor The CBB in the CBB22 capacitor is a metalized polypropylene film capacitor, and 22 is the model. It uses metalized polypropylene film as the medium and electrode. It adopts flame-retardant insulating material to wind and wrap, a non-inductive structure, one-way copper wire leads, outsourcing, epoxy resin sealing, and a special gold spray packaging process. It has excellent electrical properties, good reliability, low loss, and good self-healing properties.

Product specification:

Standards: IEC 60384-16

Dielectric: Polypropylene film

Plates: Aluminum layer deposited by evaporation under vacuum

Winding: Non-inductive type

Leads: Tinned Sn/Cu wire

Protection: Plastic case.

Box material flame retardant according to UL94 V0

Working temperature: -40 to 100 ℃

Capacitance range: 22nF to 6.8uF
