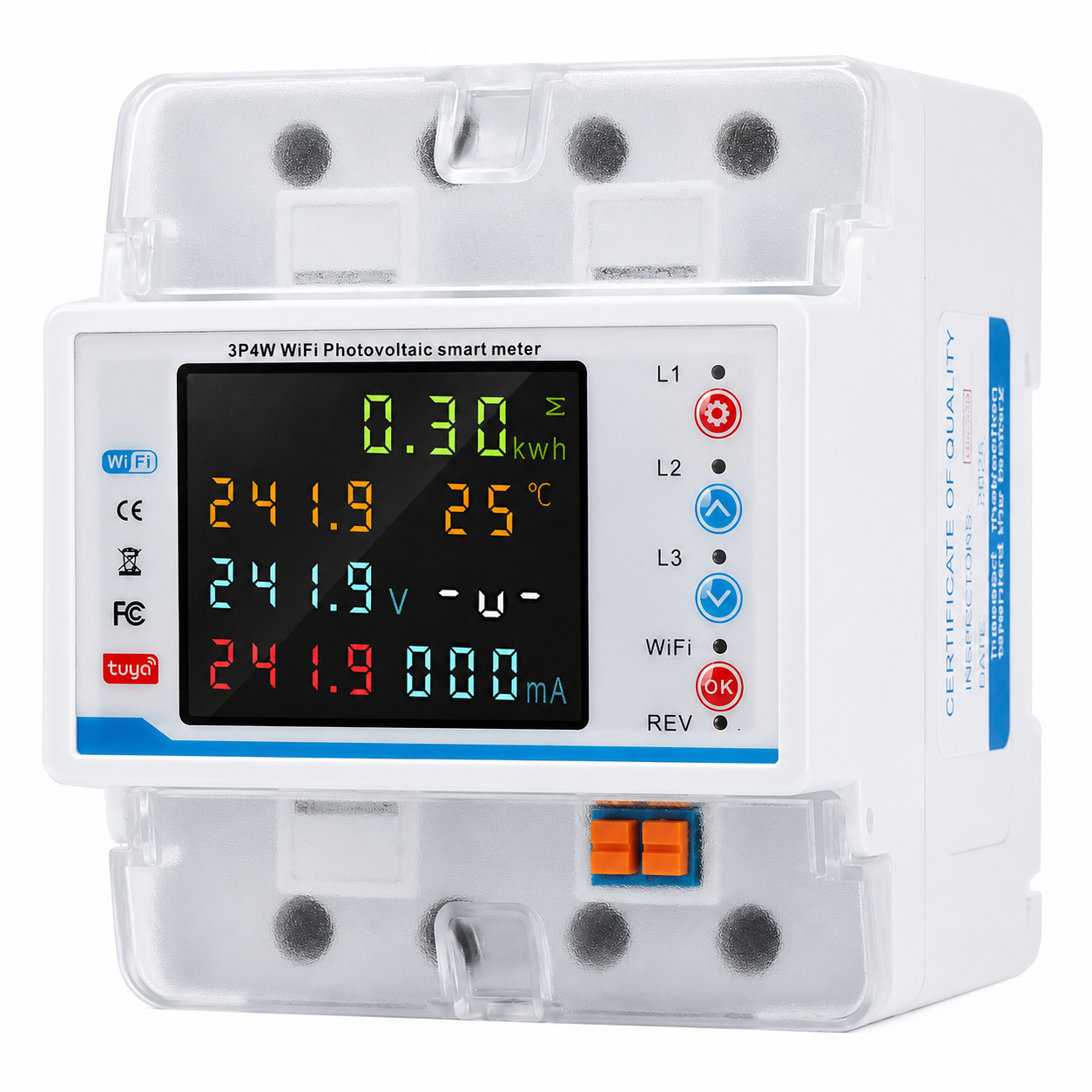

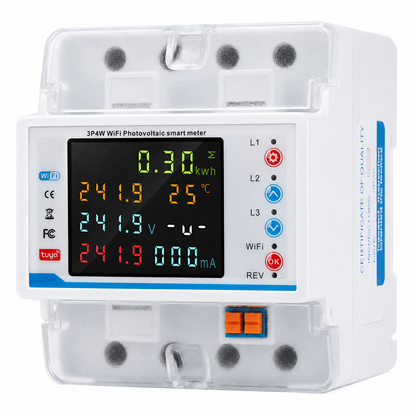

3 Phase 100A WiFi Smart Voltage Protector Relay with Remote ON/OFF, Over Under Voltage, Phase Failure Protection

3 Phase 100A WiFi Smart Voltage Protector for ASIC Miners

Protect your valuable ASIC miners, Bitcoin mining machines, and industrial electrical equipment with our 3 Phase 100A WiFi Smart Voltage Protector. Specially designed for cryptocurrency mining farms, Bitcoin mining containers, data centers, and heavy-duty industrial applications, this intelligent protection device safeguards your electrical system from voltage fluctuations, phase failures, overload conditions, and temperature issues.

With built-in WiFi remote control, users can remotely turn the power ON/OFF through a mobile app, making it ideal for managing ASIC miners such as Antminer, WhatsMiner, Avalon, and IceRiver miners from anywhere.

The protector provides advanced safety features including over-voltage protection, under-voltage protection, overcurrent protection, phase loss protection, phase reversal protection, temperature protection, and current imbalance monitoring, helping prevent costly downtime and hardware damage.

Whether you operate a Bitcoin mining farm, crypto mining container, mining hosting facility, industrial workshop, or commercial electrical system, this smart voltage protector ensures stable and reliable power for your critical equipment.

Key Features

• 100A High Current Capacity
  Suitable for factories, workshops, mining equipment, commercial buildings, and heavy electrical loads.
• WiFi Smart Control
  Turn the device ON/OFF remotely using your smartphone through the dedicated mobile app. Monitor and control your power system anytime, anywhere.
• Over & Under Voltage Protection
  Adjustable protection range:
  • Over Voltage: 120V–300V ( Each phase )
  • Under Voltage: 80V–210V  ( Each phase )
• Overcurrent & Undercurrent Protection
  Adjustable current settings from 1A to 100A to protect connected equipment from overload conditions.
• Phase Loss Protection
  Automatically disconnects the load if any phase is lost, preventing damage to motors and industrial equipment.
• Phase Sequence Protection
  Detects incorrect phase sequence and protects three-phase machinery from reverse rotation.
• Voltage & Current Unbalance Protection
  Monitors phase imbalance with adjustable settings from 1% to 100%.
• Over Temperature Protection
  Built-in temperature monitoring with adjustable protection from 10°C to 85°C.
• Timer Function
  Schedule automatic ON/OFF operations to save energy and automate electrical systems.
• Prepaid Electricity Support
  Compatible with prepaid energy management applications.
• Bidirectional Metering
  Supports power measurement in both directions.
• Optional Leakage Protection
  Leakage current protection available from 10mA to 99mA (optional model).

Technical Specifications

• Rated Voltage: AC 110V / 220V, 50/60Hz
• Rated Current: 100A
• System Type: 3 Phase
• Display: Color LCD
• Connectivity: WiFi
• Remote Control: Mobile App ON/OFF Control
• Installation: DIN Rail Mount

Applications

• Asic Miner

• Hydro Miner
• Industrial machines
• Water pumps
• Air compressors
• Cryptocurrency mining equipment
• Commercial buildings
• Agricultural motors
• Three-phase motors and machinery
• Solar and electrical distribution systems

Smart protection, remote control, and reliable performance — all in one device.
